Textile Mouth-Nose-Protection / COVID 19 Categorie 1
Ref: HR-LWHO-TEX
Technical datas
| Composite | ||
| Weight DIN EN 12127 |
[g/m² ± 10%] | 230 |
| Thickness DIN EN ISO 5084 |
[mm ± 10%] | 1.0 |

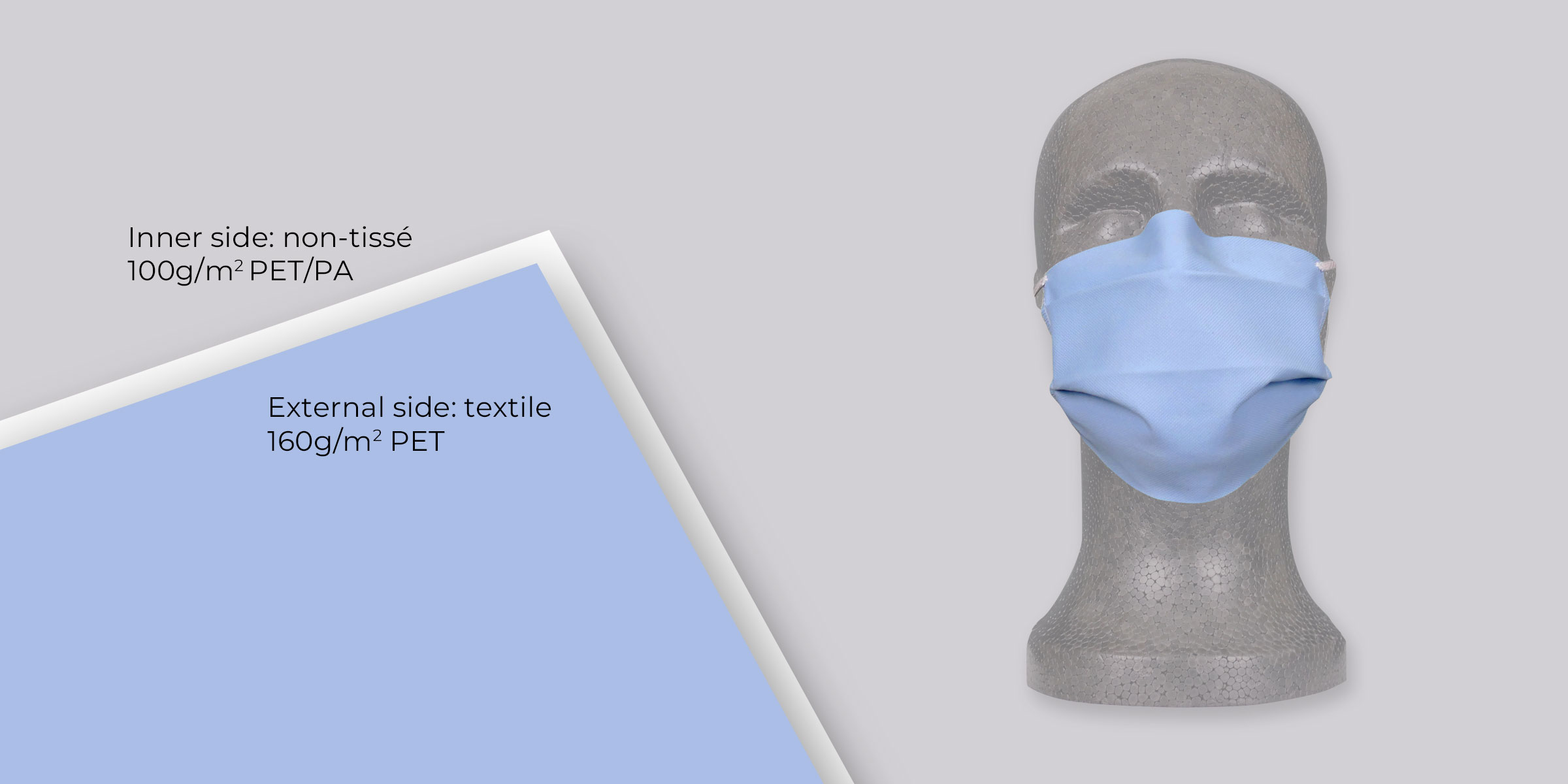

| External side( textile) | ||
| Weight DIN EN 12127 |
[g/m² ± 10%] | 160 |
| Thickness DIN EN ISO 5084 |
[mm ± 0,1] | 0.5 |
| Treatement | ||
| Water repellent agent | REACH-conform and Oeko-Tex 100-certified (guaranteed free of harmful substances: free of phthalates, brominated and chlorinated flame retardants, azo dyes, organotin compounds, chlorobenzenes, chlorinated solvents, chlorophenols, short-chain chlorinated paraffins, heavy metals, APEO / NPE, organochlorine carriers, pesticides, potassium dichromate, dimethylfumarate, dimethylformamide, aromatic amines, bisphenol A) |
|
| Washing resistance (60°C, 30min) |
[60°C, 30min] | 10 x |
| Inner Side | ||
| Weight ISO 9073-1 |
[g/m² ± 10%] | 60 |
| Thickness ISO 9073-2 |
[mm ± 0,1] | 0.78 |
| Air permeability ISO 9237 |
[l/dm²/min] | 180 |
| Hydrophobicity of outer layer AATCC Method 118-1997 |
[Note 1 - 7] | 2 |
| Relative dust holding capacity (Supplier internal test) |
[%] | 82 |
| Pores size ASTM F316-03 |
[µm] | 9.2 |
| Differential pressure at 2 m³/h/176 cm² flow velocity VDI 3926 II: 2004 |
[Pa] | 25 |
| Elastics | ||
| Width (kind of fixation: ear) | [mm] | 5 |
| Elongation (Internal supplier test) |
[%] | 130 |
Validation and conformity
Air permeability, filtration efficiency was tested based on NF EN 149, EN 14683 and wash resistance was also tested by the DGA and the IFTH.
Categorie 1:
Personal Mask using for all people and specialist staff which are in contact with the Public and other people.
Efficiency:
>90 %
Reusable:
guaranteed washable up to 10x.
